What Is a Web System?

A web system is the full pathway that turns a URL into pixels on your screen. It includes:

• Client: Your browser and device
• Network: DNS, routing, TLS/HTTPS
• Server: Web server (Nginx/Apache/Node), application logic, and databases
• Delivery: Caching layers and CDNs

Understanding this chain helps you debug faster, design better, and communicate your decisions clearly core skills for any web technologist.

Internet vs the Web

• Internet: Global infrastructure moving packets using IP across routers and links.
• Web: An application on top of the Internet that uses HTTP/HTTPS to deliver HTML, CSS, JavaScript, images, and APIs.

Exam tip: The web is not the Internet. It’s one of many Internet applications (others include email, SSH, FTP, etc.).

The Client–Server Model in Practice

• Client (browser): Sends requests, parses HTML/CSS/JS, renders UI.
• Server: Listens on ports (80/443), routes requests to app logic, accesses databases, returns responses.
• Statelessness: HTTP itself is stateless; continuous user experience is created using cookies, sessions, or tokens.

Common Ports

• 80 → HTTP (unencrypted)
• 443 → HTTPS (encrypted with TLS)

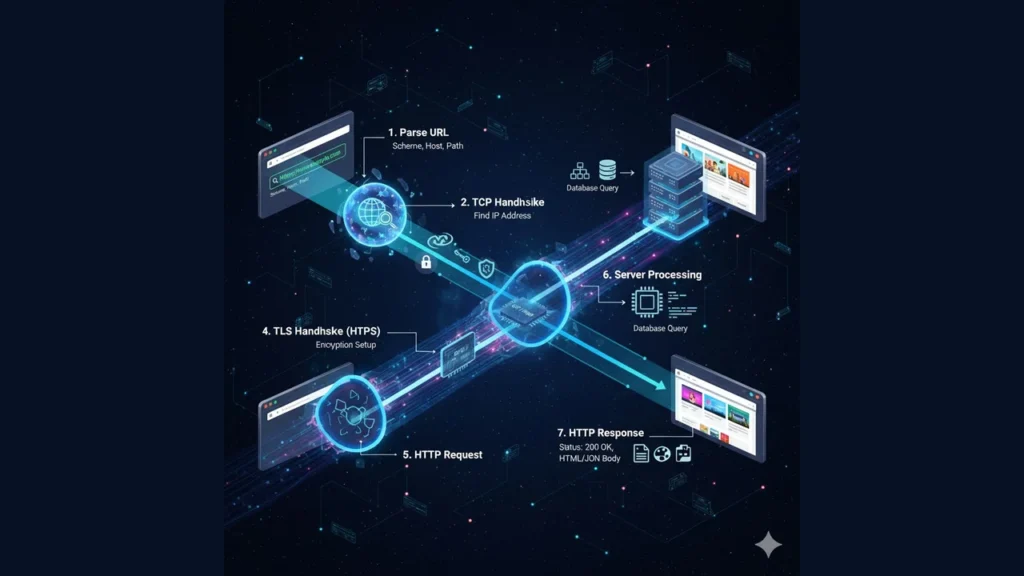

What Happens When You Type a URL (Step-by-Step)

1. Parse the URL: Browser extracts scheme (https), host, port, path, and query.
2. DNS Lookup: The browser or OS resolver asks DNS for the IP address of the host.
3. TCP Handshake: Client and server perform a three-way handshake to open a reliable channel.
4. TLS Handshake (HTTPS): They agree on ciphers, verify the certificate, and set up encryption.
5. HTTP Request: Browser sends a request line, headers, and (optionally) a body.
6. Server Processing: Web server routes to application code which may query a database.
7. HTTP Response: Server returns status, headers (e.g., Content-Type, Cache-Control) and the body (HTML or JSON).
8. Rendering: Browser builds the DOM, CSSOM, combines into a render tree, lays out, and paints.

Applications and TCP/IP Layers, Ports, TCP vs UDP, IP & Routing Basics

Understanding HTTP/HTTPS

5.1 Request & Response Formats

Request (example)

GET /index.html HTTP/1.1
Host: example.com
Accept: text/html
Accept-Language: en
Cookie: sessionId=abc123

Response (example)

HTTP/1.1 200 OK
Content-Type: text/html; charset=utf-8
Cache-Control: max-age=3600, public
ETag: "v2-8af1"
Set-Cookie: sessionId=abc123; HttpOnly; Secure; SameSite=Lax

Methods (and Safety/Idempotence)

Method	Safe?	Idempotent?	Typical Use
GET	✅	✅	Retrieve a resource
HEAD	✅	✅	Metadata only (no body)
POST	❌	❌	Create, submit forms, RPC
PUT	❌	✅	Replace resource
PATCH	❌	❌	Partial update
DELETE	❌	✅	Remove resource
OPTIONS	✅	✅	Capabilities & CORS preflight

Idempotent means repeating the request yields the same result on the server.

HTTP/1.1 vs HTTP/2 vs HTTP/3 (quick view)

• HTTP/1.1: One request per TCP connection (keep-alive helps).
• HTTP/2: Multiplexes many streams over one connection; header compression.
• HTTP/3: Uses QUIC over UDP for faster, more resilient connections.

Status Codes: The 5 Families

• 1xx Informational: 100 Continue
• 2xx Success: 200 OK, 201 Created
• 3xx Redirection: 301 Moved Permanently, 302 Found, 304 Not Modified
• 4xx Client Errors: 400 Bad Request, 401 Unauthorized, 403 Forbidden, 404 Not Found
• 5xx Server Errors: 500 Internal Server Error, 502 Bad Gateway, 503 Service Unavailable

Debug tip: A 304 means your cache is valid great for performance.

HTTP Headers You’ll Use Daily

• General: Date, Connection
• Request: Host, User-Agent, Accept, Accept-Language, Authorization, Cookie
• Response: Content-Type, Content-Length, Location (for redirects),
  Caching: Cache-Control, Expires, ETag, Last-Modified
  Security: Strict-Transport-Security, Content-Security-Policy, X-Content-Type-Options

Sample caching set (immutable assets):

Cache-Control: public, max-age=31536000, immutable
ETag: "asset-7d3c"

Sample caching set (HTML pages):

Cache-Control: public, max-age=60, stale-while-revalidate=30
ETag: "page-12"

Cookies vs Sessions (and Modern Token Options)

Cookies

Small key–value pairs stored by the browser and sent with matching requests.

• Secure: send over HTTPS only
• HttpOnly: not accessible to JavaScript (helps against XSS)
• SameSite (Lax/Strict/None): controls cross-site sending (helps against CSRF)

Sessions

Server-side state linked to a session ID stored in a cookie (e.g., sessionId=...). Great for classic web apps.

Tokens (JWT/OAuth)

Some modern systems use JWT or other tokens in headers (e.g., Authorization: Bearer …). This can reduce server-side session storage but requires careful handling (expiration, revocation).

Performance 101: Caching, ETags & CDNs

• Browser cache: Reuses files locally when allowed by headers.
• Validation: ETag or Last-Modified lets the browser check freshness cheaply.
• CDN: Replicates content geographically closer to users, reduces latency, and absorbs traffic spikes.
• Compression: Use gzip/brotli to shrink responses.
• Images: Choose modern formats (WebP/AVIF) and correct sizes; lazy-load off-screen images.

Inside the Browser: Critical Rendering Path

1. HTML → DOM
2. CSS → CSSOM
3. Render tree = DOM + CSSOM
4. Layout (size/position)
5. Paint (pixels to screen)

Blocking pitfalls: render-blocking CSS, synchronous JS, and huge images. Use defer/async, code-splitting, and responsive images (srcset, sizes).

Tools for Developers & Students

• DevTools (Chrome/Firefox): Network timeline, performance, coverage
• curl / HTTPie / Postman: Craft and inspect requests
• Wireshark: Deep packet inspection (for labs)
• Local servers: python -m http.server, Node + Vite
• Validation: W3C HTML/CSS validators; Lighthouse for performance/SEO

Troubleshooting Checklist

• DNS issues? nslookup/dig domain → verify IP and TTL
• TLS problems? Certificate valid? Correct hostname (SNI)? Mixed content blocked?
• 404/500s? Check server logs and routing; confirm file paths and permissions
• Slow page? Run Lighthouse: large images, blocking CSS/JS, no caching?
• CORS errors? Verify Access-Control-Allow-Origin and preflight (OPTIONS) responses

Mini Hands-On Lab

1. Open DevTools → Network, reload, filter by Doc. Read status, headers, and timings.
2. Terminal: curl -I https://example.com and identify caching headers.
3. Serve a local folder:
   • Python: python -m http.server 8080
   • Node: npx http-server . -p 8080
4. Change a file and see how ETag or timestamps affect 304 vs 200.
5. Optional: In Postman, send a request with a custom Accept-Language and observe content negotiation if supported.

The approach followed at E Lectures reflects both academic depth and easy-to-understand explanations.

Summary

• A web system spans client, network, server, and delivery layers.
• DNS maps domains to IPs; TLS/HTTPS secures communication.
• HTTP is stateless use cookies/sessions/tokens for continuity.
• Master status codes and headers to debug quickly.
• Caching, CDNs, and render-path optimizations are the easiest wins for performance.
