Lecture 2: Computer Networks Definition, Topologies, LAN/MAN/WAN & Protocols

What is a Network?

A computer network is a collection of two or more devices (nodes) connected to share data, resources, and services. Links can be wired (Ethernet, fiber) or wireless (Wi-Fi, cellular). Networks enable file sharing, internet access, printing, VoIP, IoT telemetry, and distributed apps.

Key terms

• Node/Host: Any addressable device (PC, phone, printer, server, router, sensor).
• Medium: The physical or wireless path carrying signals.
• Bandwidth/Throughput: The theoretical/actual data rate a link can deliver.
• Latency/Jitter: Time delay and its variance crucial for voice/video.

Network Criteria

Design and evaluation revolve around four core criteria:

1. Performance
   • Throughput: bits per second (bps).
   • Latency: propagation + processing + queuing + transmission delays.
   • Efficiency: overhead vs payload; collision/ contention control.
   • Scalability: ability to add users/traffic without major redesign.
2. Reliability
   • Redundancy (extra links/devices), fault tolerance, mean time between failures (MTBF), backup/restore, and disaster recovery plans.
3. Security
   • Confidentiality (encryption), integrity (hashing/MAC), availability (DDoS protection), authentication/authorization, network segmentation.
4. Cost
   • CapEx (cables, switches, routers) + OpEx (power, licenses, staff). Optimize with lifecycle planning and right-sizing links.

Types of Connection

1) Point-to-Point (P2P)
A dedicated link between exactly two nodes.

• Pros: Simple, high performance, low latency, strong security domain.
• Use cases: Backbone links, leased lines, device-to-device serial links.
• Cons: Scales poorly needs many links for many pairs.

2) Multipoint (Broadcast/Shared)
Multiple devices share the same link (e.g., classic bus Ethernet, Wi-Fi airtime).

• Pros: Fewer cables, easy to extend.
• Use cases: Wireless LANs, old bus topologies, shared media IoT.
• Cons: Contention/collisions, lower effective throughput per node, requires access control.

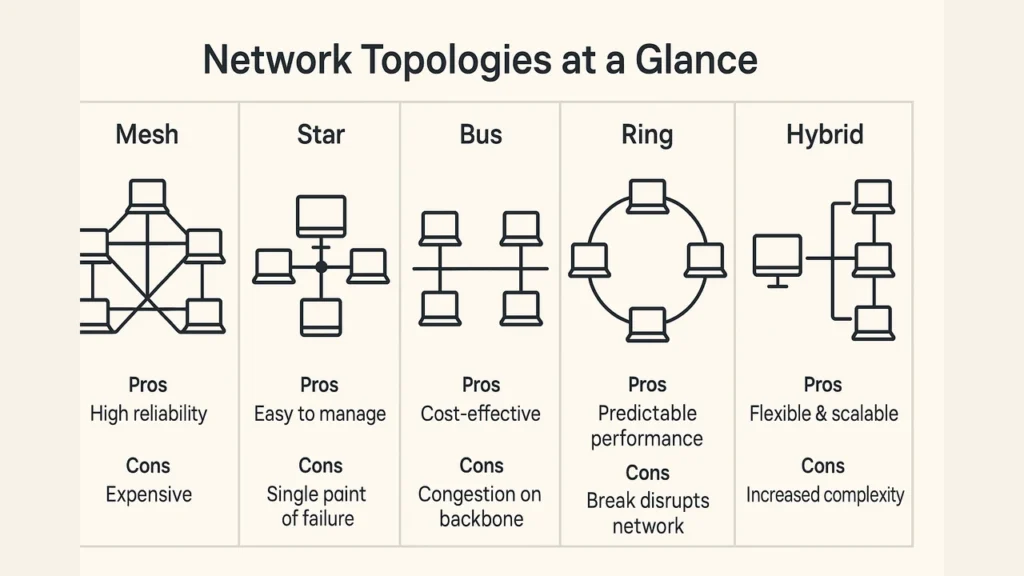

Physical Topologies

1) Mesh (full or partial)
Every node connected to many or all others.

• Pros: Highest redundancy and reliability; excellent for backbones/data centers.
• Cons: Expensive cabling and ports; complex.

2) Star
All nodes connect to a central device (switch/AP).

• Pros: Easy to manage; failure isolation; scalable with switches.
• Cons: Central device is a single point of failure (mitigate with stacks/HA).

3) Bus
All nodes share a single backbone cable.

• Pros: Minimal cabling; simple.
• Cons: Fault isolation is hard; collisions; legacy now.

4) Ring
Each node connects to two neighbors forming a circle.

• Pros: Predictable traffic path; some rings support dual-ring resilience.
• Cons: One break can disrupt (unless dual ring); slower convergence.

5) Hybrid
Mix of the above (e.g., star-of-stars with redundant inter-switch links).

• Pros: Tailored resilience and cost; common in modern campus designs.
• Cons: Requires careful planning (spanning-tree, link aggregation, routing).

Lecture-1: Computer Networks Basics Key Terms, Models & Use-Cases

Categories of Networks

LAN (Local Area Network)

• Scope: Single site (home, office, campus building).
• Media: Ethernet (1/2.5/5/10+ Gbps), Wi-Fi 5/6/7.
• Traits: High speed, low latency, private addressing, switching at Layer 2, routing at Layer 3 edge.

MAN (Metropolitan Area Network)

• Scope: City-wide inter-building connectivity.
• Media: Metro Ethernet, dark fiber, microwave.
• Traits: Aggregates multiple LANs; SLA-backed links; often provider-managed.

WAN (Wide Area Network)

• Scope: Country/continent-scale; connects branches/data centers/cloud.
• Media/Tech: MPLS, leased lines, IPSec VPN over internet, SD-WAN.
• Traits: Higher latency; QoS and path selection are critical.

Protocols and Standards (Who defines what?)

• OSI vs TCP/IP Models: Reference layers to structure functions (physical up to application). Real networks typically use the TCP/IP stack.
• IETF (RFCs): Internet protocols like IP, TCP, UDP, HTTP, DNS, BGP.
• IEEE 802: LAN/WLAN standards (802.3 Ethernet, 802.11 Wi-Fi, 802.1Q VLANs).
• ITU-T: Telecom standards (optical, DSL, carrier signaling).
• W3C/WHATWG: Web standards (HTML, CSS, JS APIs).
• Vendor/Industry Consortia: Wi-Fi Alliance, MEF, ONF, PCI-SIG interoperability certifications and best practices.

Protocol examples

• Ethernet (IEEE 802.3): Framing/MAC at Layer 2.
• IP (IETF): Addressing and routing at Layer 3 (IPv4/IPv6).
• TCP/UDP: Transport (reliable stream vs fast datagrams).
• DHCP/DNS/HTTP/HTTPS: Essential application-layer services for naming, addressing, and web.

Design Tips

• Choose star or hybrid topologies for most LANs; add redundant links between core/distribution switches.
• Use VLANs to segment traffic; apply ACLs and 802.1X for access security.
• For WANs, consider SD-WAN to bond ISP links, enforce QoS, and steer apps intelligently.
• Monitor latency, jitter, packet loss; size links by peak usage, not averages.
• Document IP plans, physical/logic diagrams, and change controls from day one.

The approach followed at E Lectures reflects both academic depth and easy-to-understand explanations.

Summary

You learned the definition of a network, the criteria that drive design, point-to-point vs multipoint connections, physical topologies, LAN/MAN/WAN categories, and the protocol/standards bodies that make the internet interoperable. With these foundations, you can read vendor diagrams, compare designs, and plan secure, scalable networks.
