Lecture 1: Introduction to Computer Systems & Compilation System (Bits, Bytes, and Integers)

Compilation System: understand how source code becomes machine code via preprocessing, compiling, assembling, linking, and loading.

What is a Computer System?

A computer system combines hardware (CPU, main memory, storage, I/O devices, buses) and software (OS, compilers, libraries, applications).

• CPU (Processor): executes instructions, houses ALU (arithmetic/logic), registers, and control unit.
• Main Memory (RAM): byte-addressable, temporary working area for programs and data.
• Storage: persistent data (SSD/HDD).
• I/O Devices: keyboard, display, network, etc.
• System Bus/Interconnect: moves data and instructions among components.
• Operating System: resource manager and abstractor (processes, virtual memory, files, networking).

Mental picture: Source code → executable → CPU fetch-decode-execute on data in memory; OS orchestrates everything.

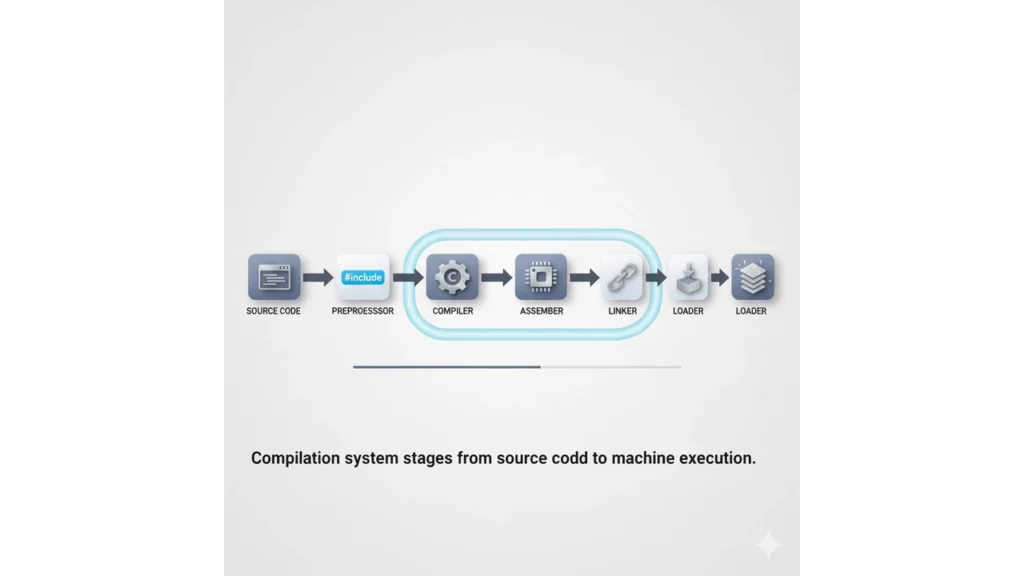

From Source to Running Program The Compilation System

When you type ./a.out, a lot has already happened.

1. Preprocessing (.c → .i): expands #include, #define, conditionals.
2. Compilation (.i → .s): converts C/Java/… into assembly for a target ISA (e.g., x86-64, MIPS).
3. Assembly (.s → .o): translates mnemonics into machine code + relocatable symbols.
4. Linking (.o + libraries → executable): resolves external references, produces a single binary.
5. Loading/Execution: OS loader maps the binary to memory; CPU starts at program entry (e.g., _start → main).

Common issues & fixes

• Undefined reference at link time: missing library or wrong order.
• ABI/arch mismatch: compile flags/bitness don’t match (e.g., 32- vs 64-bit).
• Runtime crashes: pointer misuse, stack corruption, integer overflow.

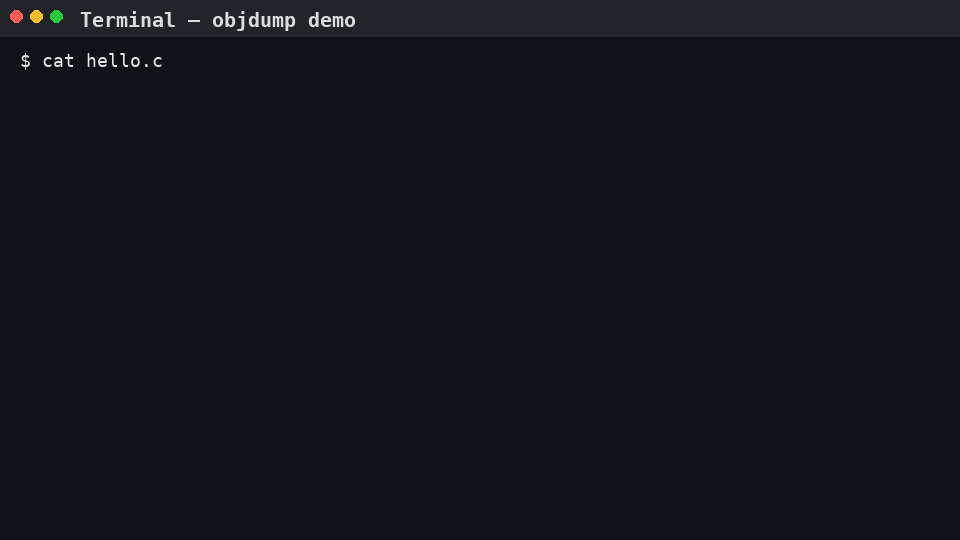

Hands-on (Linux/Mac):

# Build, view assembly, and disassemble
gcc -O2 hello.c -o hello
gcc -O2 -S hello.c -o hello.s
objdump -d hello | less

Bits, Bytes, Words

• Bit: 0 or 1.
• Nibble: 4 bits.
• Byte: 8 bits (smallest addressable unit in most systems).
• Word: native register size (e.g., 32 or 64 bits).
• Hexadecimal: compact base-16 for binary (4 bits = 1 hex digit).

Addressability: RAM is byte-addressable. Address 0x1000 points to a byte; multibyte integers occupy consecutive bytes.

Integers: Signed vs Unsigned

• Unsigned (n bits): range 0 … 2^n − 1.
• Two’s Complement Signed (n bits): range −2^(n−1) … 2^(n−1) − 1.
  • Negation: invert bits and add 1.
  • Example (8-bit): +5 = 0000 0101, −5 = 1111 1011.

Sign Extension: widening a signed value must replicate the sign bit. Mistakes here cause dramatic bugs in assembly.

Overflow

• Unsigned: wrap modulo 2^n.
• Signed: result exceeds representable range; status flags set (e.g., OF in x86).
• Example (8-bit signed): 120 + 20 = 140 → overflows (max is 127).

Conversions You’ll Use in Assembly

• Binary → Hex: group in 4s: 1011 1100 = 0xBC.
• Hex → Binary: expand each hex nibble to 4 bits: 0x7F = 0111 1111.
• Decimal → Two’s Complement (n bits): write positive in binary, then two’s-complement if negative; clip/pad to n.

Practice

1. 8-bit unsigned range?
2. 8-bit signed range?
3. Two’s-complement of 0b0001 0110 (22) is 0b1110 1010 (−22).

Where Assembly Meets C

Small C snippet:

int add(int a, int b){ return a + b; }
int main(){ return add(2, 3); }

Expect to see assembly using registers to pass/return values (ABI-dependent), an add instruction, and a process exit status via main’s return.

Typical Pitfalls (Common Mistakes)

• Integer overflow in loop counters/array indexes → use wider types, add assertions/tests.
• Signed/unsigned mix-ups → explicit casts, consistent types.
• Alignment assumptions → respect ABI; use sizeof not magic numbers.
• Relocation/link errors → compile each TU, link with correct library order.
• Undefined behavior in C → avoid shifting negatives, out-of-bounds pointers.

Mini-Lab

• Compile with -O0 and with -O2; compare generated assembly.
• Change int to unsigned int; observe differences in comparison/branch code.
• Trigger overflow intentionally and watch flags/registers in a debugger (gdb, lldb).
