Lecture 4 – Register Transfer & Datapath Design, Control Unit Design, and Instruction Set Architecture (ISA)

Build the CPU from the ground up: ISA choices, RTL register transfers, single-cycle datapath, and hardwired vs microprogrammed control with examples.

ISA vs Microarchitecture (what vs how)

• ISA (what): programmer-visible instructions, registers, addressing modes, exceptions, and the binary encoding (opcode + fields).
• Microarchitecture (how): the implementation datapath, control, pipeline depth, cache sizes, TLB, etc. Multiple µ-architectures can implement the same ISA.

Register Transfer Level (RTL) Basics

Registers: PC, general-purpose register file (e.g., 32 × 32-bit), IR (optional).
ALU: add/sub/and/or/slt, plus zero flag.
Memories: Instruction Memory (IMEM), Data Memory (DMEM).
Muxes & Extenders: ImmExt (sign/zero extend), sources to ALU and write-back paths.

Example RTL for a typical instruction cycle (single-cycle view):

• IF: IR ← IMEM[PC]; PC ← PC + 4
• ID: A ← RF[rs]; B ← RF[rt]; ImmExt ← SignExt(imm)
• EX (R-type ADD): ALUout ← A + B
• EX (I-type LW/SW): ALUout ← A + ImmExt
• MEM (LW): MDR ← DMEM[ALUout]
• WB (LW): RF[rt] ← MDR ; WB (ADD): RF[rd] ← ALUout

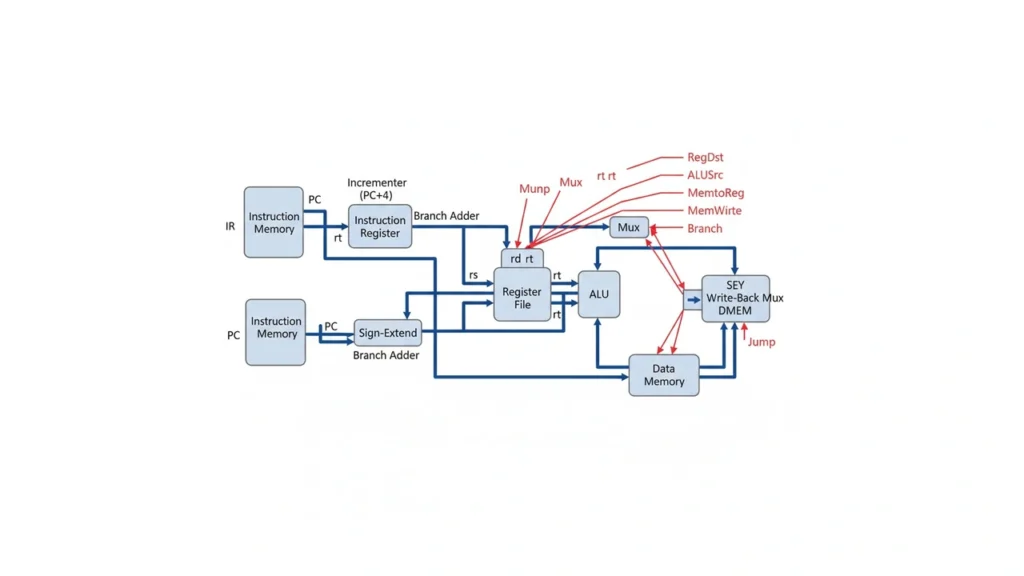

A Compact Single-Cycle Datapath (RISC-style)

Instruction formats:

• R-type: op(6) rs(5) rt(5) rd(5) shamt(5) funct(6)
• I-type: op(6) rs(5) rt(5) imm(16)
• J-type: op(6) target(26)

Control signals (classic set):

• RegDst, ALUSrc, MemtoReg, RegWrite, MemRead, MemWrite, Branch, Jump, ALUOp[1:0]

Encoding sketch (typical):

• ADD (R): RegDst=1, ALUSrc=0, MemtoReg=0, RegWrite=1, MemRead=0, MemWrite=0, Branch=0, Jump=0, ALUOp=10
• SUB (R): same as ADD but ALUOp selects SUB via funct.
• LW (I): RegDst=0, ALUSrc=1, MemtoReg=1, RegWrite=1, MemRead=1, MemWrite=0, Branch=0, Jump=0, ALUOp=00
• SW (I): ALUSrc=1, RegWrite=0, MemRead=0, MemWrite=1 (others 0), ALUOp=00
• BEQ (I): ALUSrc=0, RegWrite=0, Branch=1, ALUOp=01 (ALU does A−B; if zero → branch)
• J (J): Jump=1

Branch target: PC ← PC+4 + (SignExt(imm) << 2) when Zero=1 and Branch=1.
Jump target: PC ← {PC+4[31:28], target, 2’b00} when Jump=1.

Control Unit Design

Hardwired (combinational + small decoder)

• Main Decoder: opcode → the 8 control bits above.
• ALU Decoder: (ALUOp, funct) → ALUControl (ADD, SUB, AND, OR, SLT…).
• Pros: fast and simple for small ISAs. Cons: hard to extend (e.g., many addressing modes).

Truth-table snippet (illustrative):

Opcode	RegDst	ALUSrc	MemtoReg	RegWrite	MemRead	MemWrite	Branch	Jump	ALUOp
R-type	1	0	0	1	0	0	0	0	10
LW	0	1	1	1	1	0	0	0	00
SW	X	1	X	0	0	1	0	0	00
BEQ	X	0	X	0	0	0	1	0	01
J	X	X	X	0	0	0	0	1	XX

(X = don’t care)

Lecture 3: Cache Memory Deep Dive Locality, Mapping, Write Policies, TLB & Prefetching

Microprogrammed (control store)

• Each instruction executes as a sequence of micro-instructions stored in a control memory.
• Micro-instruction fields set datapath control lines (e.g., SRC_A, SRC_B, ALU_FUN, REG_WE, MEM_RD, PC_SRC, COND, NEXT).
• Pros: easier to add complex instructions; patchable. Cons: typically slower than hardwired.

Tiny micro-sequence (example for LW):

1. IF: IR←IMEM[PC]; PC←PC+4
2. EX: ALUout←RF[rs]+SignExt(imm)
3. MEM: MDR←DMEM[ALUout]
4. WB: RF[rt]←MDR

Worked Example (R-type ADD)

Instruction: add $t0,$t1,$t2

• ID: A←RF[$t1], B←RF[$t2]
• EX: ALUout←A+B (ALUControl=ADD)
• WB: RF[$t0]←ALUout
  Control: RegDst=1, ALUSrc=0, MemtoReg=0, RegWrite=1, ALUOp=10.

RTL/Verilog Mini-ALU

// 32-bit ALU (ADD, SUB, AND, OR, SLT)
module alu(input [31:0] A, B,
           input [2:0] op,        // 000=ADD,001=SUB,010=AND,011=OR,100=SLT
           output reg [31:0] Y,
           output zero);
  always @(*) begin
    case(op)
      3'b000: Y = A + B;
      3'b001: Y = A - B;
      3'b010: Y = A & B;
      3'b011: Y = A | B;
      3'b100: Y = ($signed(A) < $signed(B)) ? 32'd1 : 32'd0;
      default: Y = 32'd0;
    endcase
  end
  assign zero = (Y == 32'd0);
endmodule

Mini-Lab

1. Paper design: Draw the single-cycle datapath with labeled buses and the 8 control signals.
2. Control table: Fill the table rows for ADD, SUB, LW, SW, BEQ, J.
3. (Tool) In Logisim-evolution (or your preferred simulator):
   • Build a 32-bit ALU and a small register file (2 read, 1 write port).
   • Show a working LW followed by ADD and SW using hand-loaded IMEM/DMEM contents.
4. Question: Where would a sign-extend block sit? Why not zero-extend for LW address arithmetic?

Quick Check (with answers)

1. What does RegDst control? → Whether destination register is rd (R-type) or rt (I-type).
2. How is BEQ implemented in the datapath? → ALU does A−B, test Zero, and select PC+4+(imm<<2) if Branch=1.
3. Why prefer hardwired control for a tiny RISC? → Faster and simpler.
4. When might you choose microcode? → Complex ISAs or when you need patchable control.
5. Which signals must be 1 for LW in a single cycle? → ALUSrc, MemtoReg, RegWrite, MemRead.
