Lecture 4 – UI Components and Event Handling in Android

In Android development, UI Components (User Interface Components) are the building blocks of your app’s screen. Every visible element like a button, text field, or image is a part of the app’s UI.

These components are defined in XML layout files and connected to your logic using Java or Kotlin in your Activity files.

Common UI Components in Android

Let’s look at the most commonly used UI elements.

Button

A Button is a clickable component that performs an action when pressed.

Example:

<Button
    android:id="@+id/btnSubmit"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Submit" />

Java/Kotlin:

Button btn = findViewById(R.id.btnSubmit);
btn.setOnClickListener(v -> {
    Toast.makeText(this, "Button Clicked!", Toast.LENGTH_SHORT).show();
});

Lecture 1: Introduction to Database Systems

TextView

A TextView displays text to the user.

Example:

<TextView
    android:id="@+id/tvMessage"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Hello World!"
    android:textSize="18sp"
    android:textColor="@color/black" />

Use Case:
Show messages, titles, labels, or any static text.

EditText

An EditText allows users to type text input like entering their name or email.

Example:

<EditText
    android:id="@+id/etName"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:hint="Enter your name" />

Getting Input in Java/Kotlin:

EditText etName = findViewById(R.id.etName);
String userName = etName.getText().toString();

ImageView

An ImageView displays images such as logos or photos.

Example:

<ImageView
    android:id="@+id/imgLogo"
    android:layout_width="100dp"
    android:layout_height="100dp"
    android:src="@drawable/logo" />

You can change the image dynamically:

imgLogo.setImageResource(R.drawable.profile_picture);

Event Handling in Android

Event handling means responding to user interactions like button clicks, text input, or swipes. Android provides listeners that “listen” for these actions.

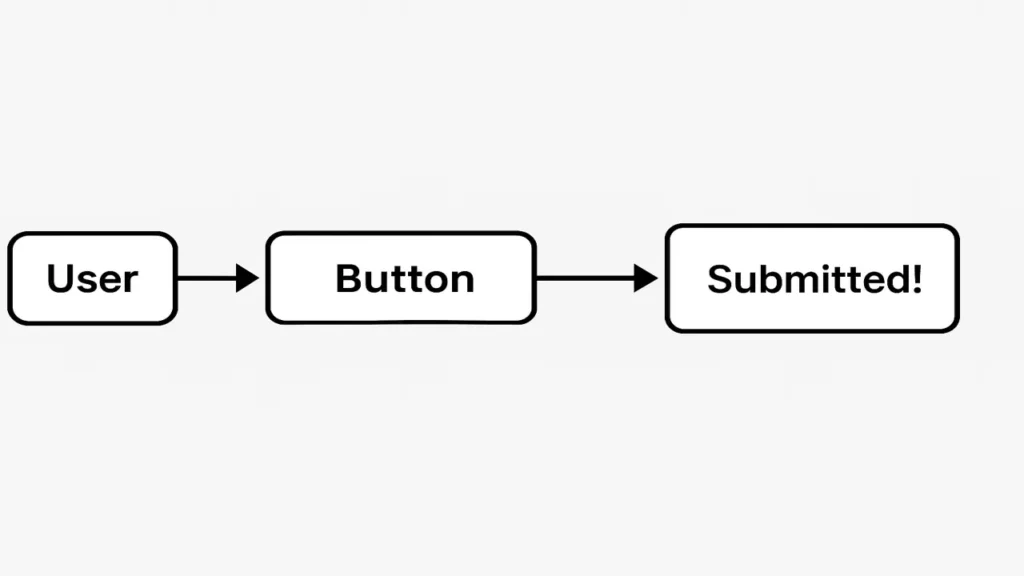

Click Listeners

When a user taps a button or image, a Click Listener detects it.

Example:

Button btnSubmit = findViewById(R.id.btnSubmit);
btnSubmit.setOnClickListener(new View.OnClickListener() {
    @Override
    public void onClick(View v) {
        Toast.makeText(MainActivity.this, "Submitted!", Toast.LENGTH_SHORT).show();
    }
});

Toast Messages

A Toast is a short pop-up message that appears briefly on the screen.

Example:

Toast.makeText(this, "Data Saved Successfully!", Toast.LENGTH_LONG).show();

Snackbars

Snackbars are similar to Toasts but can include actions (e.g., “Undo”).

Example:

Snackbar.make(view, "Item Deleted", Snackbar.LENGTH_LONG)
        .setAction("UNDO", v -> {
            // Undo code here
        })
        .show();

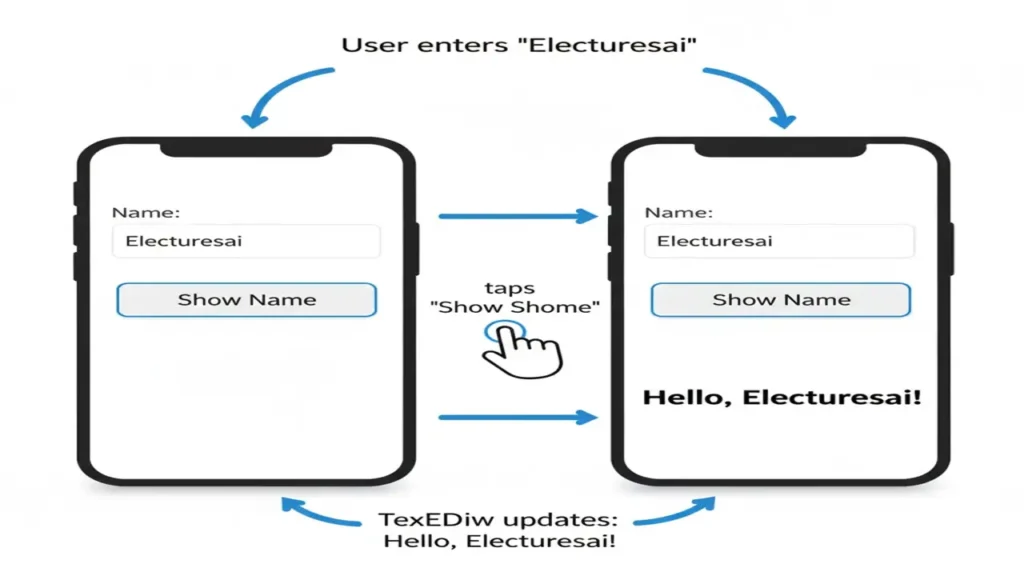

Handling User Input

Combining EditText and Button, we can create a simple user interaction.

Example App: Display name after button click.

XML Layout:

<EditText
    android:id="@+id/etName"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:hint="Enter your name" />

<Button
    android:id="@+id/btnShow"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="Show Name" />

<TextView
    android:id="@+id/tvResult"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="" />

Java/Kotlin Code:

EditText etName = findViewById(R.id.etName);
TextView tvResult = findViewById(R.id.tvResult);
Button btnShow = findViewById(R.id.btnShow);

btnShow.setOnClickListener(v -> {
    String name = etName.getText().toString();
    tvResult.setText("Hello, " + name + "!");
});

Summary and Learning Outcome

Concept	Description	Example
Button	Performs action when clicked	“Submit” button
TextView	Displays static or dynamic text	“Welcome” label
EditText	Takes user input	“Enter Name” field
ImageView	Shows an image resource	App logo
Click Listener	Handles click events	setOnClickListener()
Toast / Snackbar	Shows quick user messages	“Saved!”, “Undo”

Concluding Thoughts

• Design Android UIs using Buttons, TextViews, EditTexts, and ImageViews
• Handle events with Click Listeners
• Provide user feedback using Toasts and Snackbars
• Build interactive input-based mini-apps

Suggested Practice

1. Create a login screen with two EditTexts (username, password) and a login button.
2. Show a Toast message “Login Successful!” after clicking the button.
3. Add a reset button that clears the text fields.
